Project Description

This is a four bedroom, two full and one half-bath home that was built for a Taft School faculty family, on a site that adjoins the campus.  A second major goal was to build the home to be an example and tool for the students to learn about green building.

Although it takes time to establish a home’s energy profile, it is expected that this home will achieve its net zero annual energy goal.

Project Architect: Trillium Architects

Special Features:

  • Design and exterior finishes are historically accurate for the neighborhood

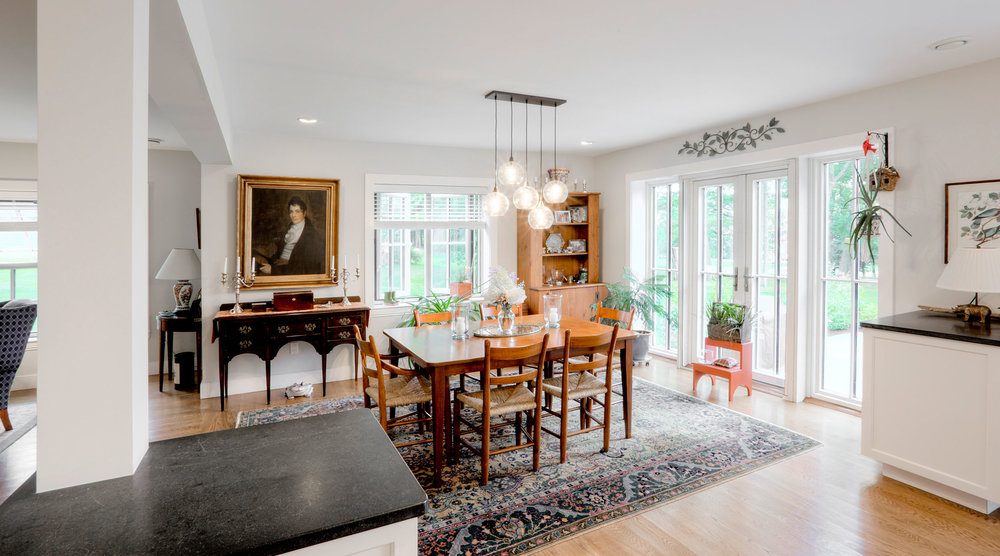

  • Open-concept living layout
  • 5” white oak floors
  • Built-in living room shelving

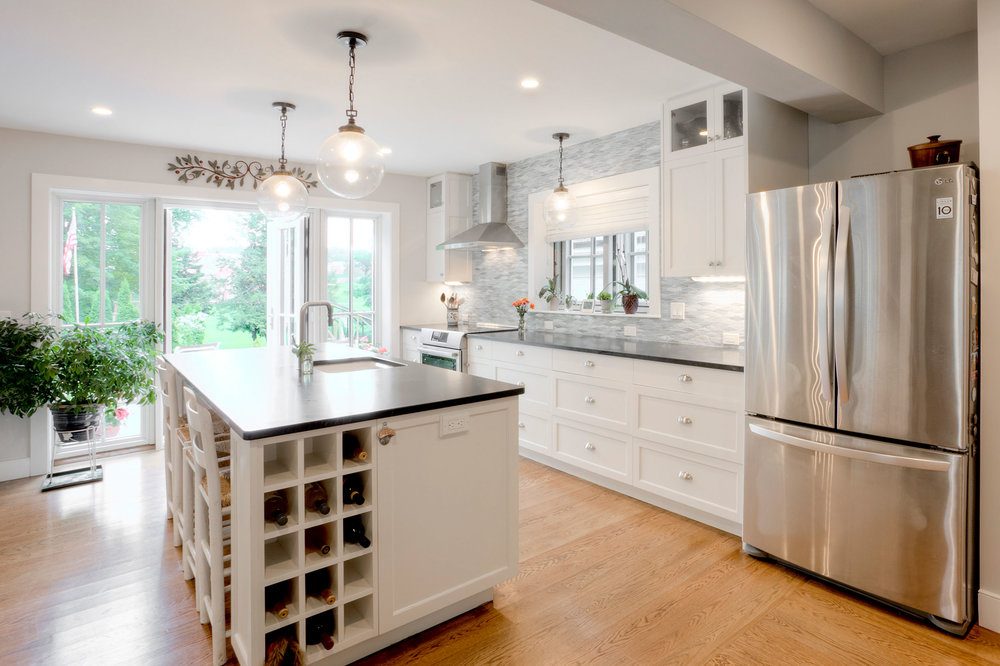

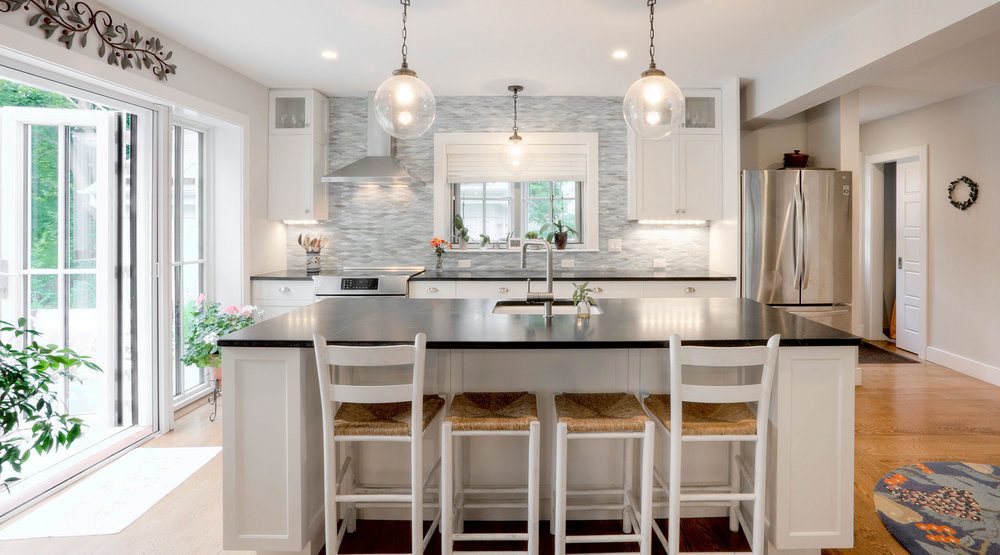

  • Custom kitchen and bathroom cabinetry
  • En suite master bedroom and bath
  • Finished and fully conditioned basement

Green Building Approaches:

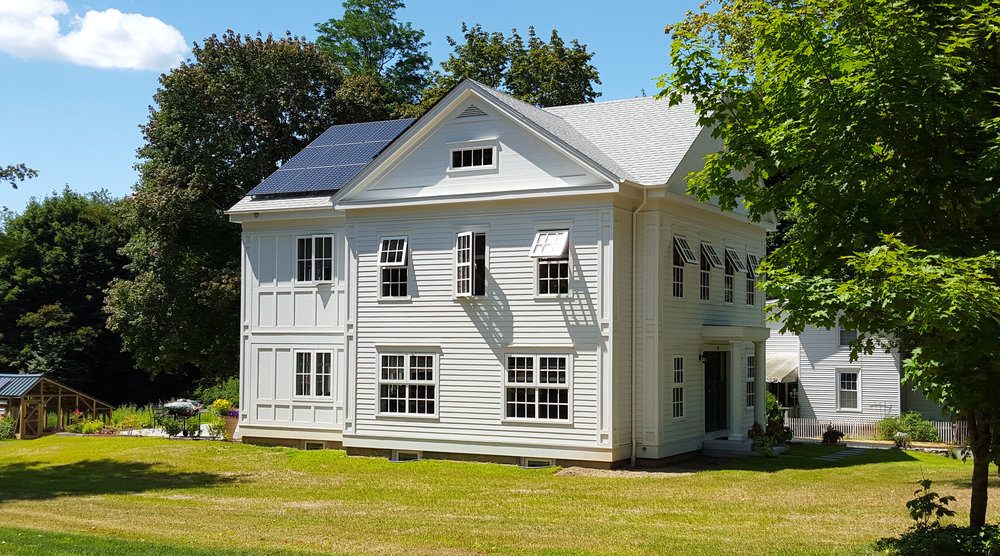

  • Rear of house faces solar south to capture winter heat
  • 406sf of east, south, and west-facing windows capture half of the energy required for space heating

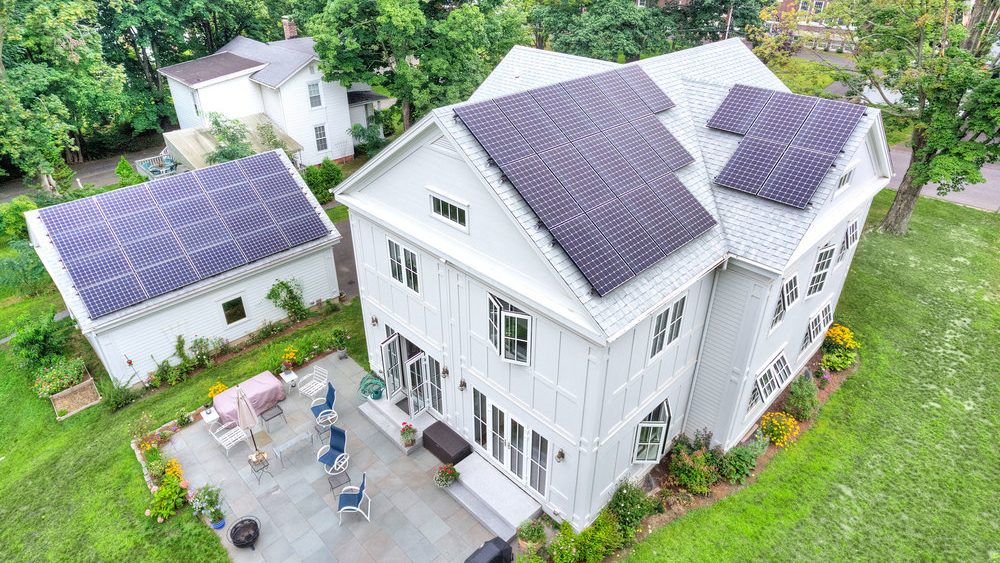

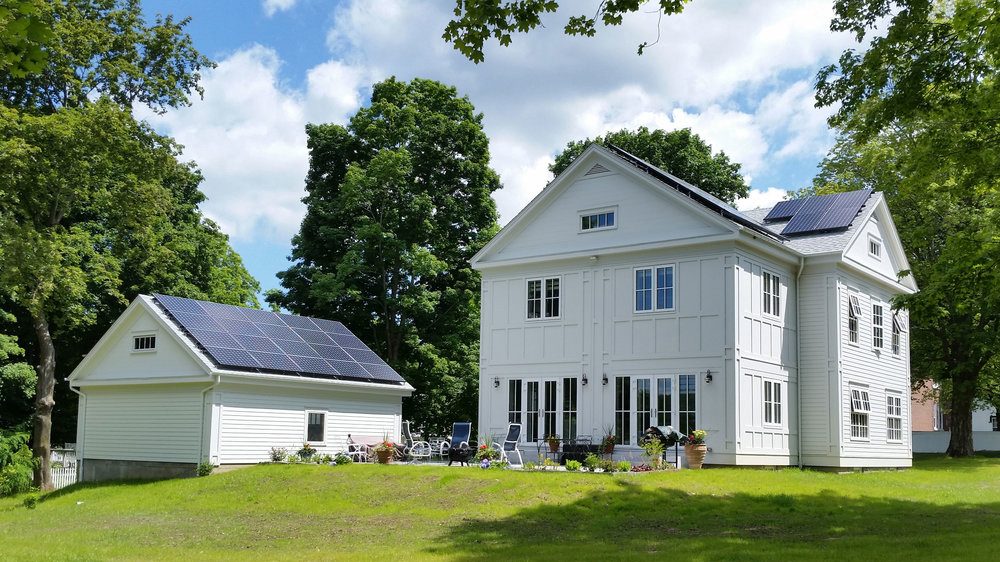

  • 13.1kw PV panels on house and garage should provide more energy than the annual operating needs
  • 8” of EPS rigid foam board insulation under the slab
  • 3” of continuous closed-cell (low GWP) spray foam applied to basement walls
  • 3.5” of dense-pack cellulose between 2×4 studs on interior face of basement walls
  • 2×4 double wall framing to practically eliminate thermal bridging
  • 2” of closed-cell spray foam applied to interior face of exterior wall sheathing
  • Exterior sheathing includes 1” of polyiso rigid foam insulation to further reduce thermal bridging
  • 8.5” of dense-pack cellulose insulation completes exterior wall insulation
  • Attic floor is insulated with 24” of dense-pack cellulose
  • Acrylic sheathing tapes used to achieve exceptional air-tightness of 0.60ACH50

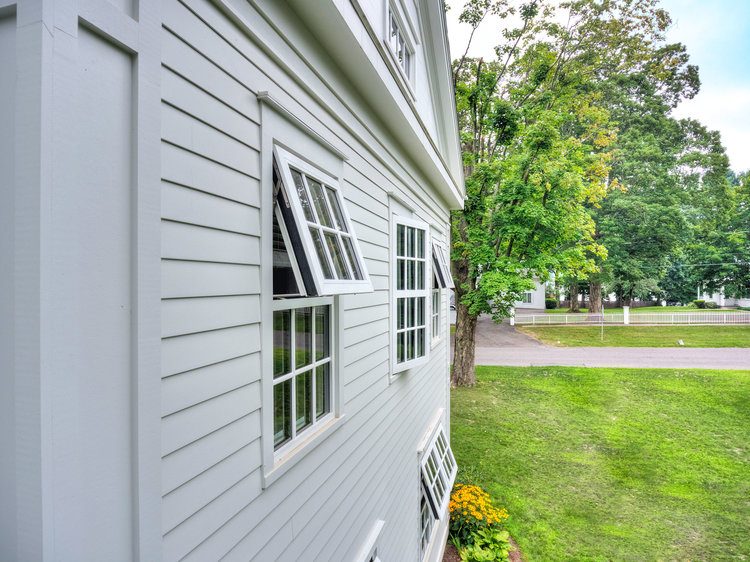

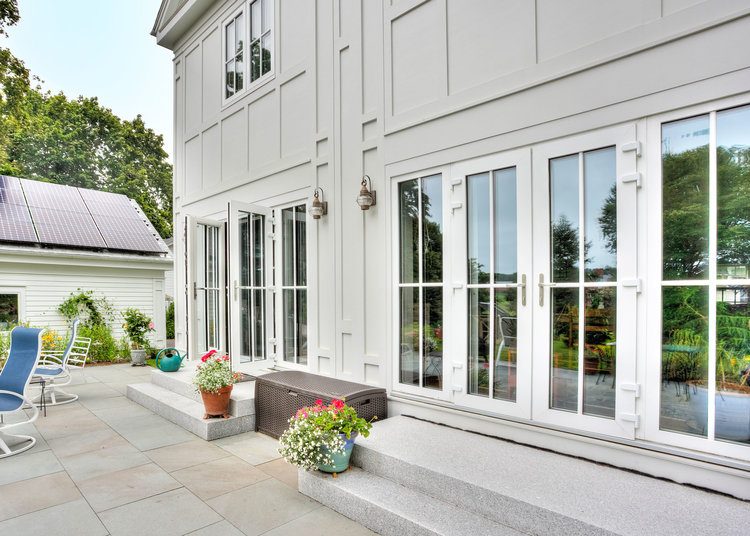

  • European triple-glazed aluminum-clad wood windows with u-values of 0.13 (roughly R-8)
  • Small ducted air-source heat pump heats and cools the entire house
  • No central heating or cooling required
  • Heat pump water heater extracts heat from interior air

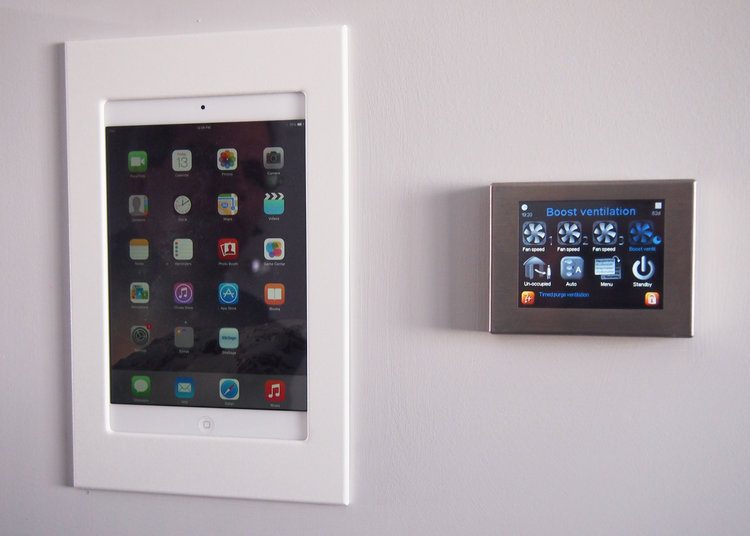

  • Energy recovery ventilation has separate small diameter duct distribution system
  • Fiber cement siding installed over a ¾” drainage plane
  • Exterior trim made from recycled fly ash and rated for ground contact
  • 100% LED lighting
  • Low-flow water fixtures throughout

Project Details

Certifications:

  • LEED for Homes Platinum Certified
  • Passive House Certified
  • Zero Energy Ready Home Certified
    • Postive Energy Home
  • Water Sense Certified
  • Indoor Air Quality Plus Certified
  • Energy Star Certified

Awards:

  • US DOE Housing Innovation Award 2015 – Grand Prize Winner (article)
  • Connecticut Zero Energy Challenge 2014 – 3rd place and Honorable Mention (video and article)

Project Year:

2014

HERS Score:

-17

Type of Home:

Colonial

City:

Watertown

State:

Connecticut

County:

Litchfield

Project Size:

3,600 sf
